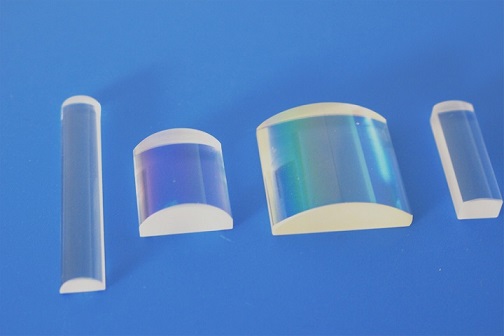

N-BK7 plano-convex cylindrical lenses are manufactured from fine annealed glass and polished to tight tolerances to meet the demanding requirements of applications including line illumination for metrology, laser scanning, spectroscopy and diode laser beam shaping. Plano convex cylindrical lenses could be offered with AR coated at different wavelengths. We offer custom made service for the lenses, just send us drawings or specifications.
Our Custom Made Capabilities:
| Substrate | N-BK7 or H-K9L |
| Tolerance | +/-0.02mm |
| Surface quality | 40-20 or better |
| Surface flatness | Lambda/4 or better |
| Bevel | Protective |
| Coaring | AR coated for different wavelengths, R<0.5% |
| Focal length | 1% |
| Other glasses | available for other optical glasses |
| RoHS | certificated |
Here are some cylindrical lenses we have in stock,
|
Dimension |
12.7×12.7mm |
|
Dimensional tolerance |
+/-0.05mm |
|
Lens type |
cylinder |
|
EFL |
12.5mm |
|
Centre thickness |
6.6mm |
|
Tolerance |
+/-0.05mm |
|
Edge thickness |
1.33mm |
|
Radius |
6.46mm |
|
Material |
H-K9L |
|
AR coating |
400-700nm |
|
Wavelength range |
400-700nm |
