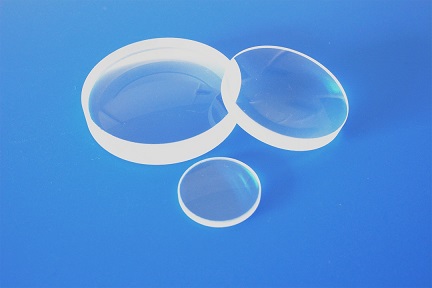

We offer positive meniscus lenses with different kinds of substrates like BK7, SF4, SF5 and UV fused silica. There are coating options for these lenses, L/4 MgF2, VIS, VIS-NIR, etc. Most of our AR coatings are very durable with resistance to both physical and environmental damage. When specifying an AR coating to suit your application, you need to be fully aware of the spectral range of your optical system.
Custom Made Capabilities:
Diameter range: 6mm to 500mm
Tolerance: +/-0.05mm
Thickness tolerance: +0/-0.05mm
Surface quality: 40-20 or 20-10
Surface accuracy: Lambda/2
Centering: 3 arc min
Coating: Single layer AR coating or multi-layer AR coating for visible wavelengths
|
Dia.(mm) |
Back focal length(mm |
Lens form |
|
13 |
93 |
Positive meniscus lens |
|
14 |
61 |
Positive meniscus lens |
|
15 |
35 |
Positive meniscus lens |
|
16 |
95 |
Positive meniscus lens |
|
44 |
281 |
Positive meniscus lens |
|
58 |
476 |
Positive meniscus lens |

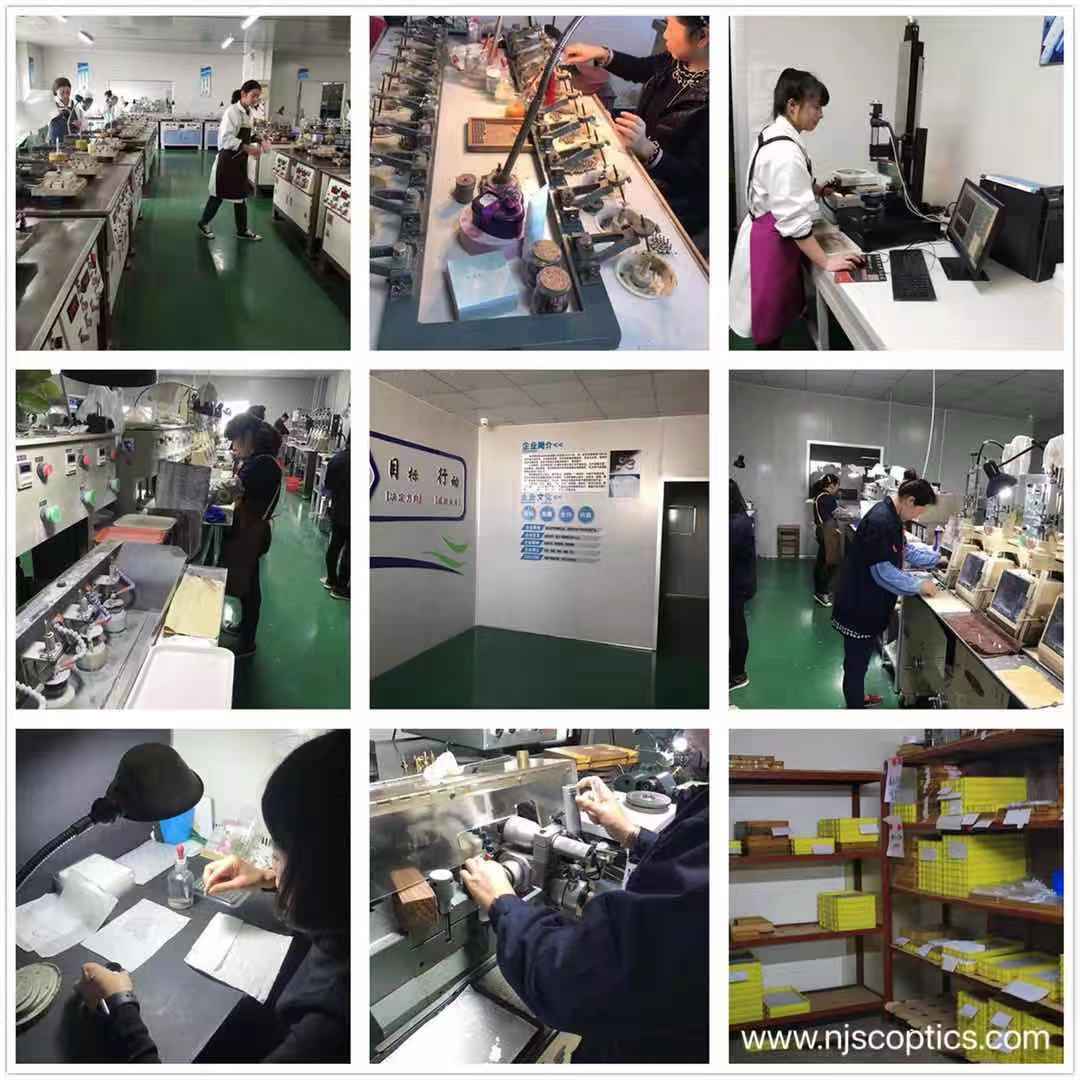

Our workshop:
