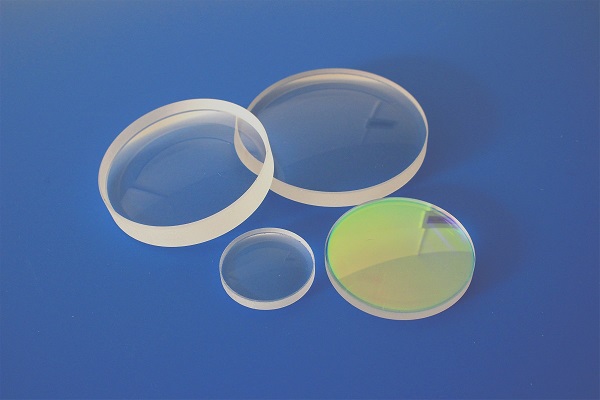

Convex-concave lens

Convex-concave lens is positive meniscus lens, with thicker at the center than at the edge. The convex-concave lenses shorten the focal length and minimize spherical aberration. We offer convex-concave lenses with materials of BK7, JGS1, JGS3, H-ZF1, H-ZF4 and BaK4. Anti-reflection coatings are available, single layer anti-reflection coating and multi-layer anti-reflection coating for wide range of spectrums.

Custom Made Capabilities:

Lens Shape convex-concave or meniscus
Substrate UV fused silica glass, JGS1, N-BK7, H-ZF1,H-ZF4 and IR optical glass
Diameter tolerance +/-0.05mm
Thickness tolerance +/-0.05mm
Surface quality 60-40 or better
Flatness Lambda/2 or better
Centering 3 arc mins
Coating AR coated
Certificated RoHs
