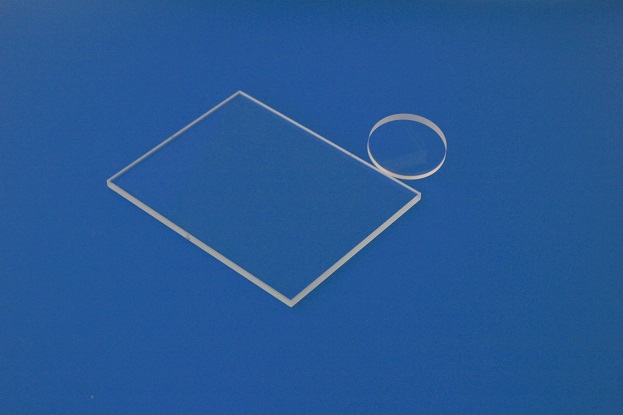

UV fused silica optical window

UV fused silica optical windows have hydroxyl absorption at wavelength 1400nm, 2200nm and 2700nm. Anhydrous synthetic quartz is a special material that does not absorb water molecules in the molecular glass. Therefore there is no hydroxyl absorption at the IR region. Fused silica windows are also ideal for UV applications. They have good transmission at 130nm to 8000nm.

Custom Made Specifications:


Window shape Round or squre or other shapes
Diameter range 2mm to 600mm
Tolerance +/-0.05mm
Thickness tolerance +/-0.05mm
Surface quality 40-20 or better
Surface flatness L/4 or better
Chamfer Protective
Coating AR coated at different wavelengths
Substrate UV grade fused silica glass, JGS1, JGS3
